HR10A-10WTJ-12S(73)
  • Share:

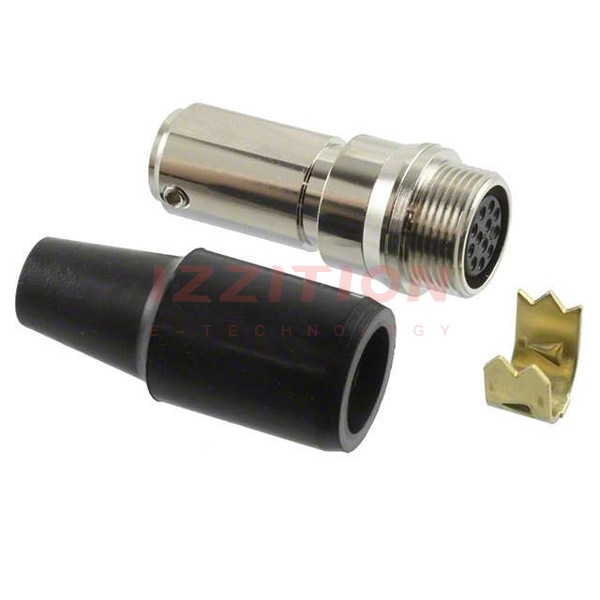

Hirose Electric Co Ltd HR10A-10WTJ-12S(73)

Manufacturer No:
HR10A-10WTJ-12S(73)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HR10A-10WTJ-12S(73) Datasheet
ECAD Model:
-
Description:
CONN JACK FMALE 12P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Jack, Female Sockets
Number of Positions:12
Shell Size - Insert:10
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:Keyed
Primary Material:Metal
Shell Material:Brass
Shell Finish:Nickel
Contact Finish - Mating:Silver
Color:Silver
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Clamp, Strain Relief
Shielding:Unshielded
Current Rating (Amps):2A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

$30.85
26

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-10WTJ-12S(73) HR10A-10WTP-12S(73)   HR10A-10WTR-12S(73)   HR10A-10TJ-12S(73)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active
Connector Type Jack, Female Sockets Plug, Female Sockets Receptacle, Female Sockets Jack, Female Sockets
Number of Positions 12 12 12 12
Shell Size - Insert 10 10 10 10
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount Free Hanging (In-Line)
Mounting Feature - - Bulkhead - Rear Side Nut -
Termination Solder Cup - Solder Cup Solder Cup
Fastening Type Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed
Primary Material Metal - Metal Metal
Shell Material Brass - Brass Brass
Shell Finish Nickel - Nickel Nickel
Contact Finish - Mating Silver - Silver Silver
Color Silver - Silver Silver
Ingress Protection IP67 - Dust Tight, Waterproof - IP67 - Dust Tight, Waterproof -
Material Flammability Rating UL94 V-0 - UL94 V-0 UL94 V-0
Features Backshell, Clamp, Strain Relief - - Backshell, Clamp, Strain Relief
Shielding Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
