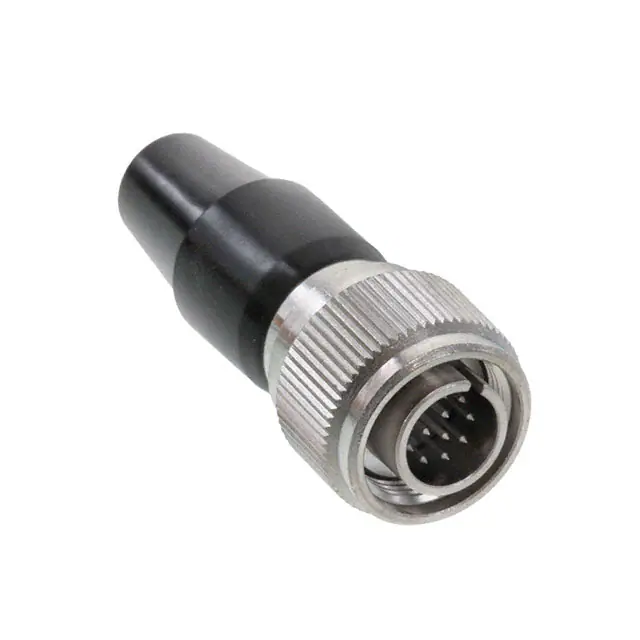

| Part Number | HR10A-10TP-12P(73) | HR10A-10WTP-12P(73) | HR10A-10TPA-12P(73) | HR10A-10P-12P(73) | HR10A-10TJ-12P(73) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Jack, Male Pins |
| Number of Positions | 12 | 12 | 12 | 12 | 12 |
| Shell Size - Insert | 10 | 10 | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Push-Pull | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Alloy | Brass | Brass | Zinc Alloy | Brass |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver | Silver | Silver | Silver |
| Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Coupling Nut, Strain Relief | Backshell, Clamp, Strain Relief | Backshell, Clamp, Strain Relief |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
