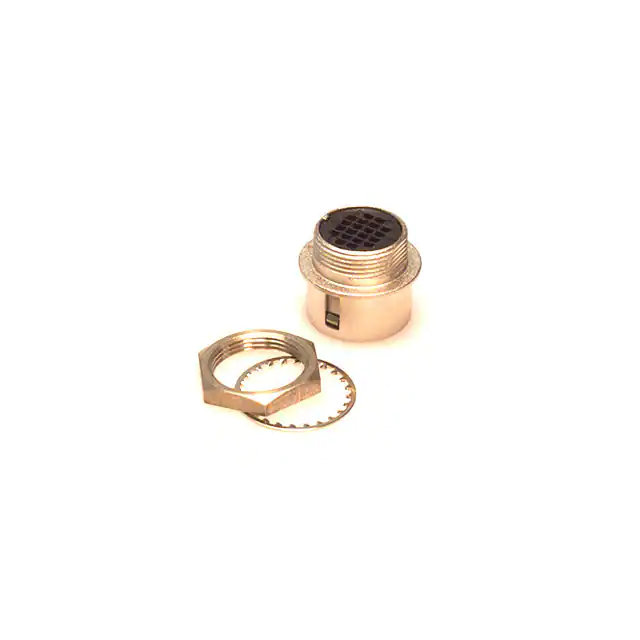

| Part Number | HR10A-10R-12PC(71) | HR10A-10R-12SC(71) | HR10A-10R-10PC(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Female Sockets | For Male Pins |
| Number of Positions | 12 | 12 | 10 |
| Shell Size - Insert | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - |
| Contact Type | Crimp | Crimp | Crimp |
| Contact Size | 1.0mm | 1.0mm | 1.0mm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | - | - | - |
| Shell Material | Zinc Alloy | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
