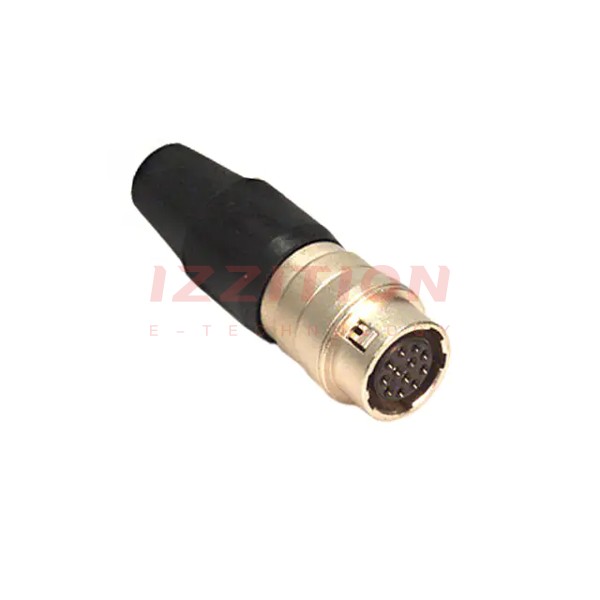

| Part Number | HR10A-10J-12S | HR10A-10R-12S | HR10A-10P-12S | HR10A-10TJ-12S | HR10-10J-12S | HR10A-10J-12P |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Jack, Female Sockets | Receptacle, Female Sockets | Plug, Female Sockets | Jack, Female Sockets | Jack, Female Sockets | Jack, Male Pins |
| Number of Positions | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size - Insert | 10 | 10 | 10 | 10 | 10 | 10 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - | - | - |
| Termination | - | - | - | - | Solder Cup | - |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Threaded | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | Metal | - |
| Shell Material | - | - | - | - | - | - |
| Shell Finish | - | - | - | - | Nickel | - |
| Contact Finish - Mating | - | - | - | - | Gold | - |
| Color | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC | 100VAC, 140VDC |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
