HR10A-10J-12PC
  • Share:

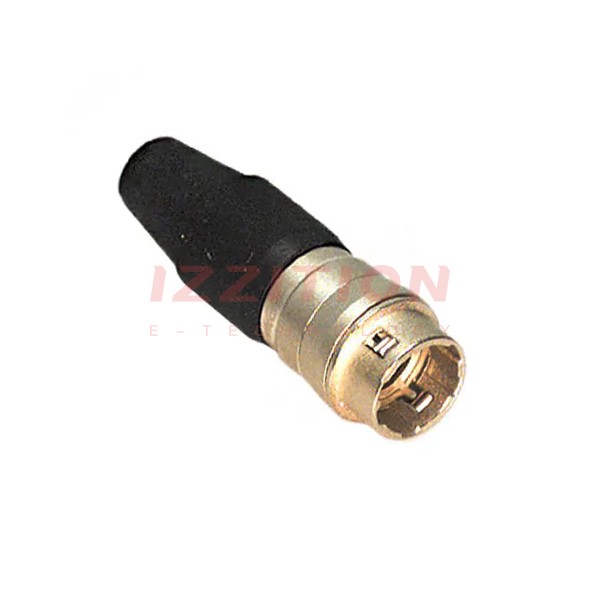

Hirose Electric Co Ltd HR10A-10J-12PC

Manufacturer No:
HR10A-10J-12PC
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR10A-10J-12PC Datasheet
ECAD Model:
-
Description:
CONN JACK HSG MALE 12POS INLINE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Jack Housing
Type:For Male Pins
Number of Positions:12
Shell Size - Insert:10
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:1.0mm
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:-
Shell Material:Zinc Alloy
Shell Finish:Nickel
Housing Color:Silver
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Features:Backshell, Cable Clamp, Strain Relief
Shielding:Unshielded
0 Remaining View Similar

In Stock

-
117

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-10J-12PC HR10A-10J-12SC   HR10A-10P-12PC   HR10A-10R-12PC   HR10A-10J-10PC
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Jack Housing Jack Housing Plug Housing Receptacle Housing Jack Housing
Type For Male Pins For Female Sockets For Male Pins For Male Pins For Male Pins
Number of Positions 12 12 12 12 10
Shell Size - Insert 10 10 10 10 10
Shell Size, MIL - - - - -
Contact Type Crimp Crimp Crimp Crimp Crimp
Contact Size 1.0mm 1.0mm 1.0mm 1.0mm 1.0mm
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount Free Hanging (In-Line)
Mounting Feature - - - Bulkhead - Rear Side Nut -
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed Keyed
Primary Material - - - - -
Shell Material Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy Zinc Alloy
Shell Finish Nickel Nickel Nickel Nickel Nickel
Housing Color Silver Silver Silver Silver Silver
Ingress Protection - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief Backshell, Cable Clamp, Strain Relief - Backshell, Cable Clamp, Strain Relief
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded
