HR10A-10J-10P
  • Share:

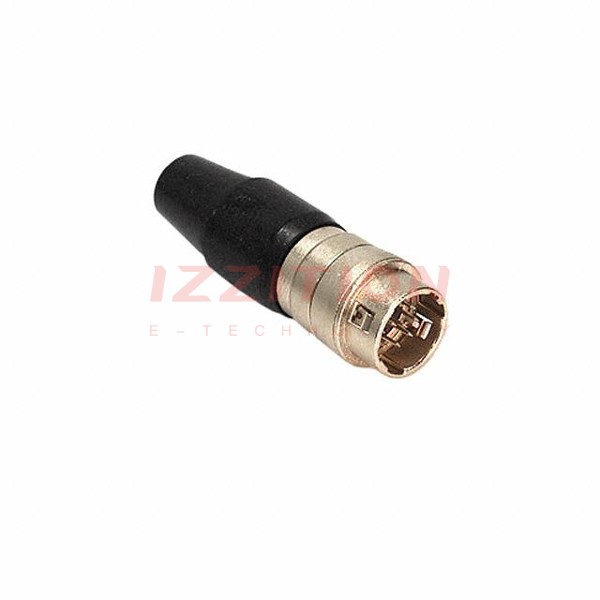

Hirose Electric Co Ltd HR10A-10J-10P

Manufacturer No:
HR10A-10J-10P
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HR10A-10J-10P Datasheet
ECAD Model:
-
Description:
CONN JACK MALE 10POS SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Jack, Male Pins
Number of Positions:10
Shell Size - Insert:10
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Push-Pull
Orientation:Keyed
Primary Material:-
Shell Material:-
Shell Finish:-
Contact Finish - Mating:-
Color:-
Ingress Protection:-
Material Flammability Rating:-
Features:-
Shielding:Unshielded
Current Rating (Amps):2A
Voltage Rating:100VAC, 140VDC
Cable Opening:-
Operating Temperature:-25°C ~ 85°C
0 Remaining View Similar

In Stock

-
353

Please send RFQ , we will respond immediately.

Similar Products

Part Number HR10A-10J-10P HR10A-10J-12P   HR10A-10P-10P   HR10A-10R-10P
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete
Connector Type Jack, Male Pins Jack, Male Pins Plug, Male Pins Receptacle, Male Pins
Number of Positions 10 12 10 10
Shell Size - Insert 10 10 10 10
Shell Size, MIL - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount
Mounting Feature - - - Bulkhead - Rear Side Nut
Termination Solder Cup - - -
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull
Orientation Keyed Keyed Keyed Keyed
Primary Material - - - -
Shell Material - - - -
Shell Finish - - - -
Contact Finish - Mating - - - -
Color - - - -
Ingress Protection - - - -
Material Flammability Rating - - - -
Features - - - -
Shielding Unshielded Unshielded Unshielded Unshielded
Current Rating (Amps) 2A 2A 2A 2A
Voltage Rating 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC 100VAC, 140VDC
Cable Opening - - - -
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
