Please send RFQ , we will respond immediately.

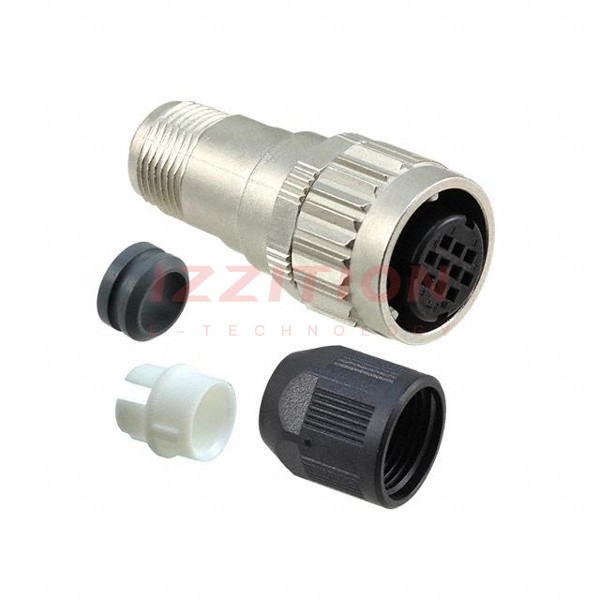

| Part Number | HR08D-12WPB-10SC | HR08D-12WPM-10SC | HR08D-12WPN-10SC | HR08D-12WPK-10SC | HR08D-12WLPB-10SC | HR08D-12WPA-10SC |
|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug Housing | Plug Housing | Plug Housing | Plug Housing | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets | For Female Sockets |
| Number of Positions | 10 | 10 | 10 | 10 | 10 | 10 |
| Shell Size - Insert | 12 | 12 | 12 | 12 | 12 | 12 |
| Shell Size, MIL | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Fastening Type | Push-Twist | Push-Twist | Push-Twist | Push-Twist | Push-Twist | Push-Twist |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | - | - | - | - | - | - |
| Shell Material | Aluminum Alloy, Zinc Alloy | Aluminum Alloy, Zinc Alloy | Aluminum Alloy, Zinc Alloy | Aluminum Alloy, Zinc Alloy | Aluminum Alloy, Zinc Alloy | Aluminum Alloy, Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Housing Color | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver | Black, Silver |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof | IP67/IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Backshell, Coupling Nut | Backshell, Coupling Nut | Backshell, Coupling Nut | Backshell, Coupling Nut | Backshell, Coupling Nut, Rotatable | Backshell, Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
