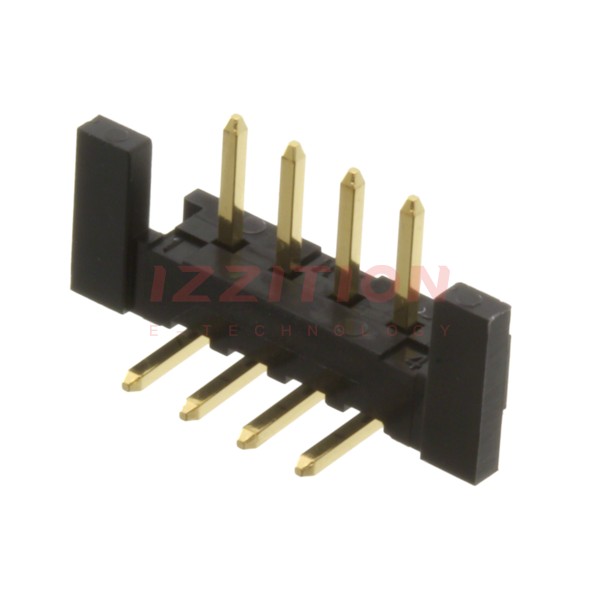

| Part Number | HNC2-2.5P-4DSL(12) | HNC2-2.5P-3DSL(12) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Positions | 4 | 3 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Unshrouded | Unshrouded |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.169" (4.30mm) | 0.169" (4.30mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | - | - |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | 250V | 250V |
