HNC1-2.5P-12DS(02)
  • Share:

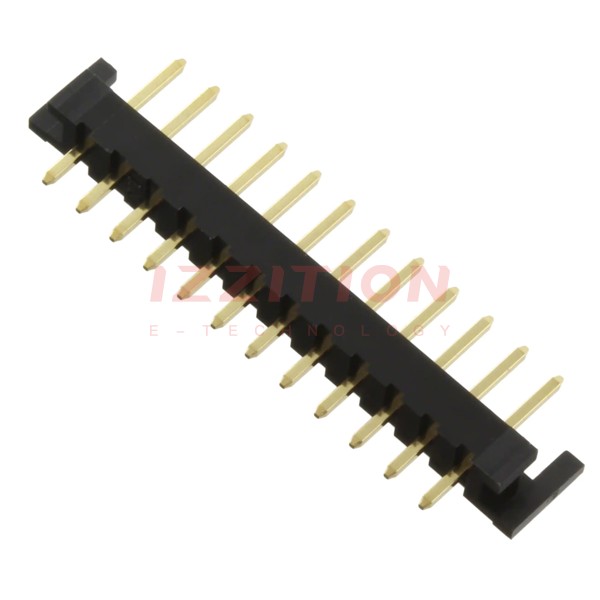

Hirose Electric Co Ltd HNC1-2.5P-12DS(02)

Manufacturer No:
HNC1-2.5P-12DS(02)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HNC1-2.5P-12DS(02) Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 12POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.197" (5.00mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.433" (11.00mm)
Insulation Height:0.256" (6.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:250V
0 Remaining View Similar

In Stock

$2.40
60

Please send RFQ , we will respond immediately.
