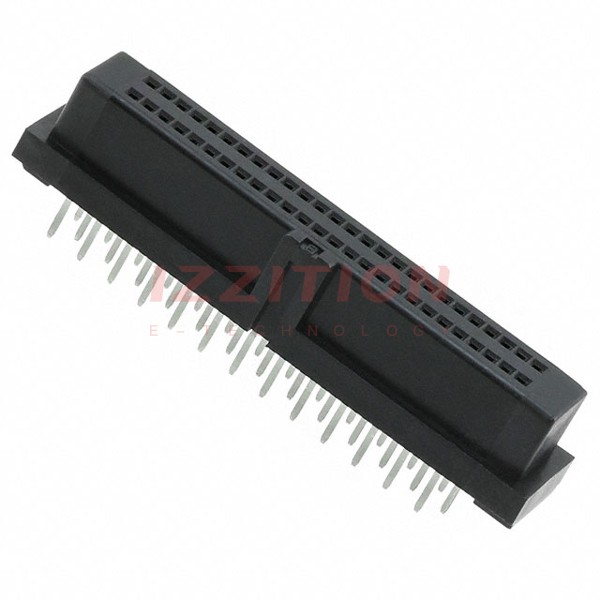

| Part Number | HIF6A-52DA-1.27DSA(71) | HIF6A-50DA-1.27DSA(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 52 | 50 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.346" (8.80mm) | 0.346" (8.80mm) |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | 14.8mm | 14.8mm |
| Ingress Protection | - | - |
| Features | Polarizing Key | Polarizing Key |
| Current Rating (Amps) | 0.5A | 0.5A |
| Voltage Rating | 125VAC | 125VAC |
