HIF6A-40DA-1.27DS(71)
  • Share:

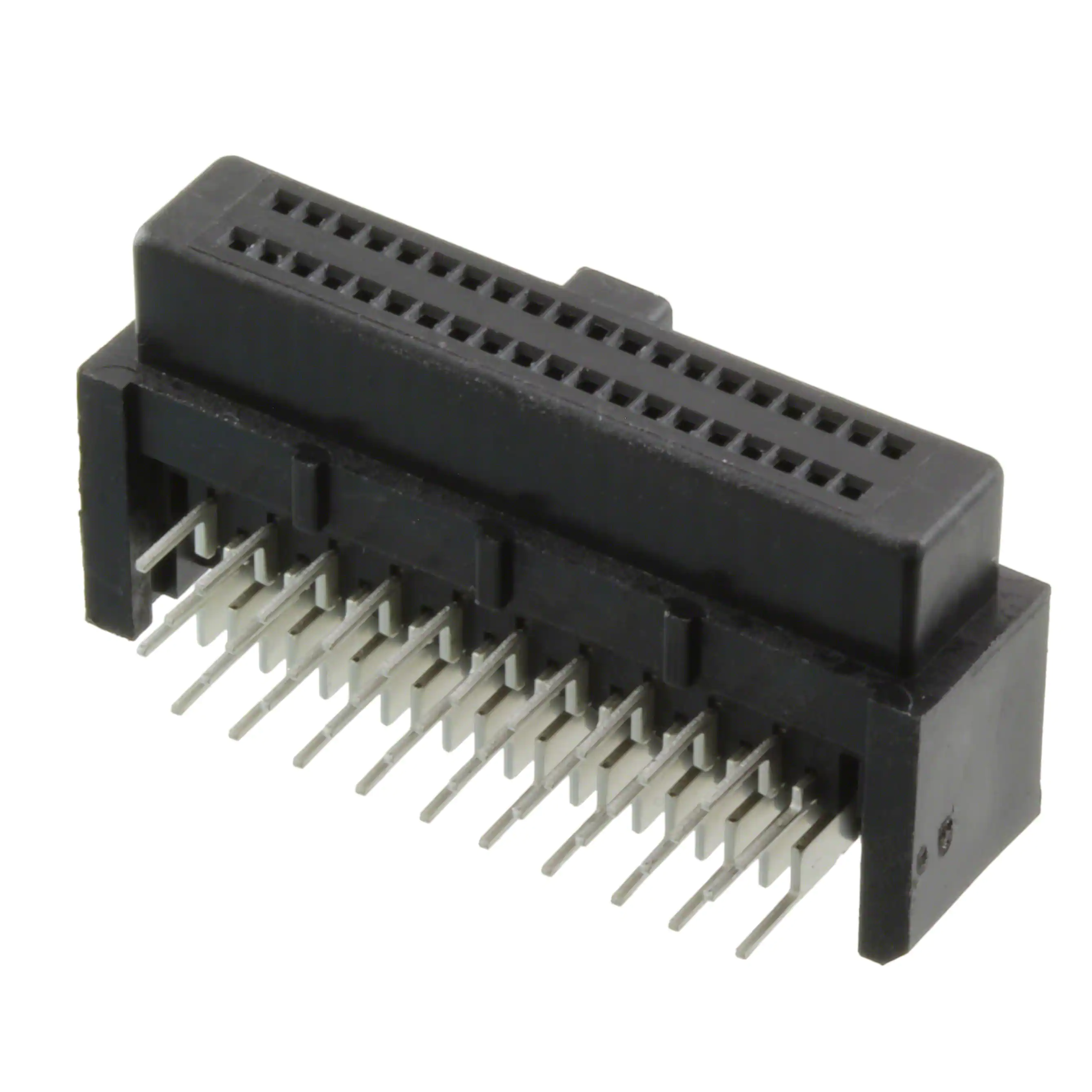

Hirose Electric Co Ltd HIF6A-40DA-1.27DS(71)

Manufacturer No:
HIF6A-40DA-1.27DS(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HIF6A-40DA-1.27DS(71) Datasheet
ECAD Model:
-
Description:
CONN RCPT 40P 0.05 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:40
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.335" (8.51mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:-
Mated Stacking Heights:-
Ingress Protection:-
Features:Polarizing Key
Current Rating (Amps):0.5A
Voltage Rating:125VAC
0 Remaining View Similar

In Stock

$10.54
51

Please send RFQ , we will respond immediately.

Similar Products

Part Number HIF6A-40DA-1.27DS(71) HIF6B-40DA-1.27DS(71)   HIF6A-50DA-1.27DS(71)   HIF6A-60DA-1.27DS(71)   HIF6A-80DA-1.27DS(71)   HIF6A-40DA-1.27DSA(71)   HIF6A-20DA-1.27DS(71)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Number of Positions 40 40 50 60 80 40 20
Number of Positions Loaded All All All All All All All
Pitch - Mating 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm)
Number of Rows 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Insulation Color Black Black Black Black Black Black Black
Insulation Height 0.335" (8.51mm) 0.335" (8.51mm) 0.335" (8.51mm) 0.335" (8.51mm) 0.335" (8.51mm) 0.346" (8.80mm) 0.335" (8.51mm)
Contact Length - Post 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm)
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post - - - - - Tin -
Mated Stacking Heights - - - - - 14.8mm -
Ingress Protection - - - - - - -
Features Polarizing Key Mounting Flange, Polarizing Key Polarizing Key Polarizing Key Polarizing Key Polarizing Key Polarizing Key
Current Rating (Amps) 0.5A 0.5A 0.5A 0.5A 0.5A 0.5A 0.5A
Voltage Rating 125VAC 125VAC 125VAC 125VAC 125VAC 125VAC 125VAC
