HIF6-52PA-1.27DS(71)
  • Share:

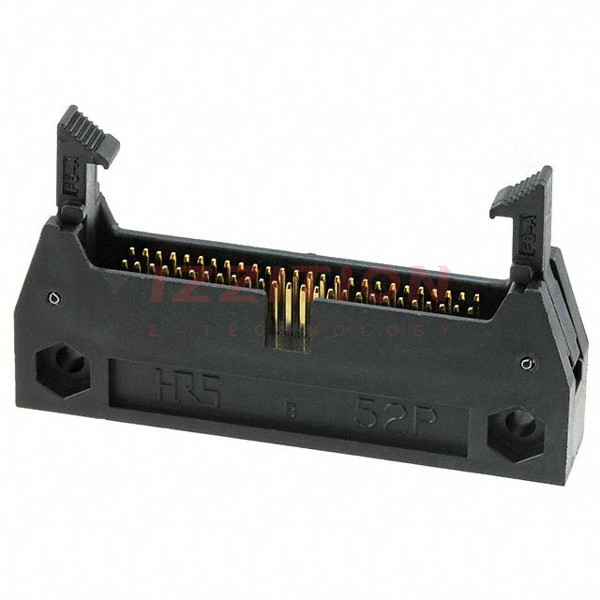

Hirose Electric Co Ltd HIF6-52PA-1.27DS(71)

Manufacturer No:
HIF6-52PA-1.27DS(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HIF6-52PA-1.27DS(71) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 52POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:52
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.217" (5.50mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:300V
0 Remaining View Similar

In Stock

$6.37
27

Please send RFQ , we will respond immediately.

Similar Products

Part Number HIF6-52PA-1.27DS(71) HIF6A-52PA-1.27DS(71)   HIF6-52PA-1.27DSA(71)   HIF6-32PA-1.27DS(71)   HIF6-50PA-1.27DS(71)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Active
Connector Type Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm) 0.050" (1.27mm)
Number of Positions 52 52 52 32 50
Number of Rows 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All All All All
Style Board to Cable/Wire Board to Board Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder
Fastening Type Latch Lock/Eject Hooks Push-Pull Latch Lock/Eject Hooks Latch Lock/Eject Hooks Latch Lock/Eject Hooks
Contact Length - Mating 0.217" (5.50mm) 0.205" (5.21mm) 0.217" (5.50mm) 0.217" (5.50mm) 0.217" (5.50mm)
Contact Length - Post - - 0.110" (2.79mm) - -
Overall Contact Length - - 0.563" (14.30mm) - -
Insulation Height 0.335" (8.51mm) 0.335" (8.51mm) 0.606" (15.39mm) 0.335" (8.51mm) 0.335" (8.51mm)
Contact Shape Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Contact Finish - Post Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features Keying Slot, Mounting Flange - Keying Slot, Mounting Flange Keying Slot, Mounting Flange Keying Slot, Mounting Flange
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Ingress Protection - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black
Current Rating (Amps) 0.5A 0.5A 0.5A 0.5A 0.5A
Voltage Rating 300V 300V 300V 300V 300V
