HIF6-20PA-1.27DS(71)
  • Share:

Hirose Electric Co Ltd HIF6-20PA-1.27DS(71)

Manufacturer No:
HIF6-20PA-1.27DS(71)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HIF6-20PA-1.27DS(71) Datasheet
ECAD Model:
-
Description:

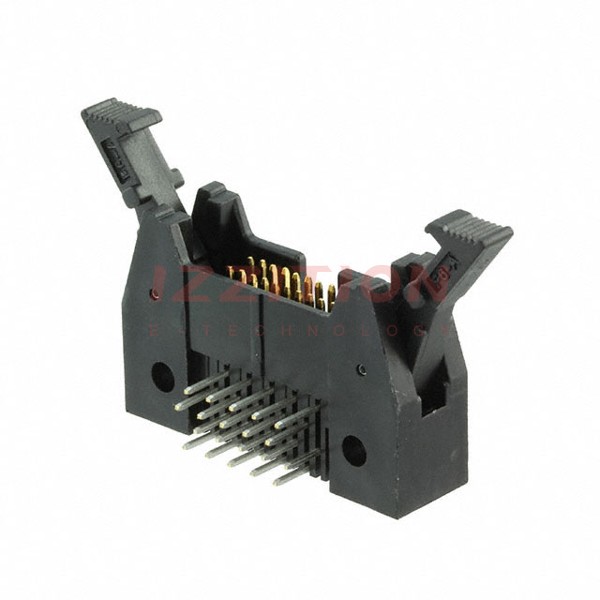

CONN HEADER R/A 20POS 1.27MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.217" (5.50mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:300V
