HIF4-40P-3.18DS(01)
  • Share:

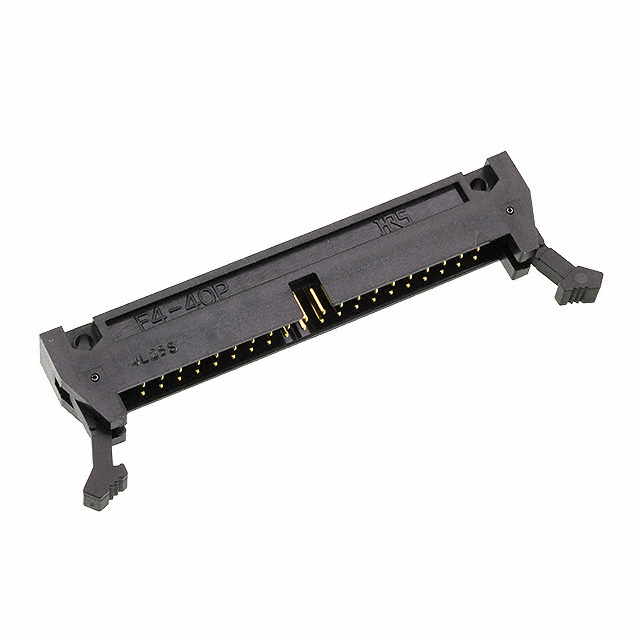

Hirose Electric Co Ltd HIF4-40P-3.18DS(01)

Manufacturer No:
HIF4-40P-3.18DS(01)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HIF4-40P-3.18DS(01) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 40POS 3.18MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.125" (3.18mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.125" (3.18mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.201" (5.10mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.394" (10.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:300V
0 Remaining View Similar

In Stock

$17.97
32

Please send RFQ , we will respond immediately.
