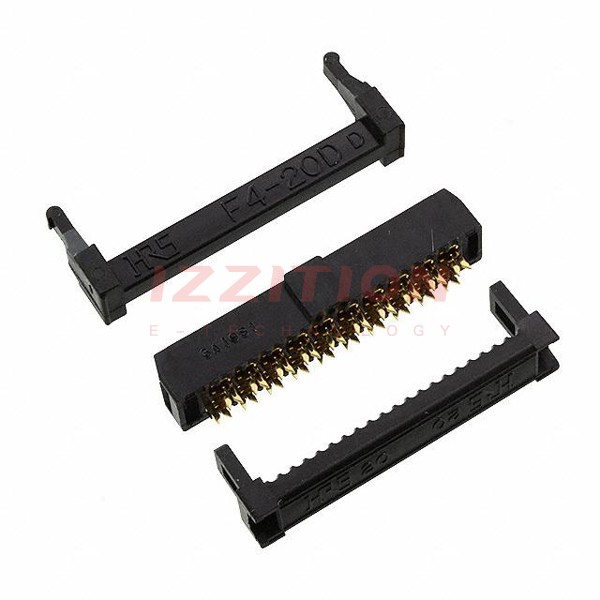

| Part Number | HIF4-20D-3.18R(01) | HIF4-26D-3.18R(01) | HIF4-40D-3.18R(01) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Number of Positions | 20 | 26 | 40 |
| Pitch | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | - | - | - |
| Cable Termination | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | 24 AWG | 24 AWG |
| Features | Strain Relief | Strain Relief | Strain Relief |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
