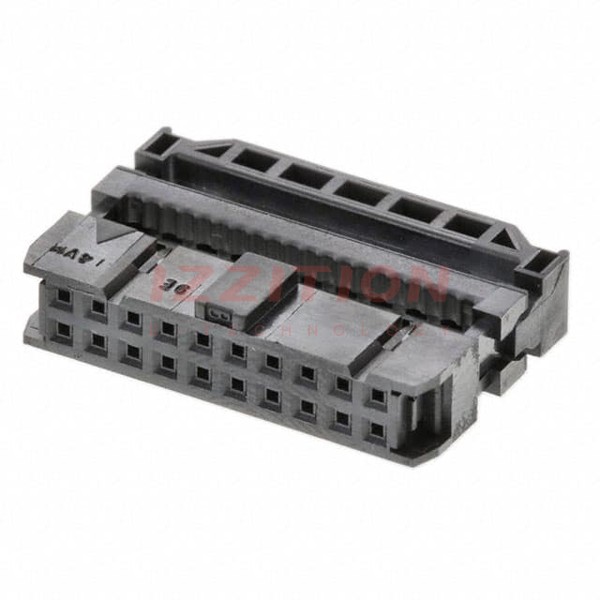

| Part Number | HIF3MAW-20D-2.54R | HIF3MAW-26D-2.54R | HIF3MAW-30D-2.54R | HIF3MAW-60D-2.54R |
|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Socket | Socket | Socket | Socket |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 20 | 26 | 30 | 60 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Type | Ribbon Cable | Ribbon Cable | Ribbon Cable | Ribbon Cable |
| Wire Gauge | 28 AWG | 28 AWG | 28 AWG | 28 AWG |
| Features | Feed Through, Polarizing Key, Strain Relief | Feed Through, Polarizing Key, Strain Relief | Feed Through, Polarizing Key, Strain Relief | Feed Through, Polarizing Key, Strain Relief |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 5.90µin (0.150µm) | 5.90µin (0.150µm) | 5.90µin (0.150µm) | 5.90µin (0.150µm) |
| Color | Black | Black | Black | Black |
