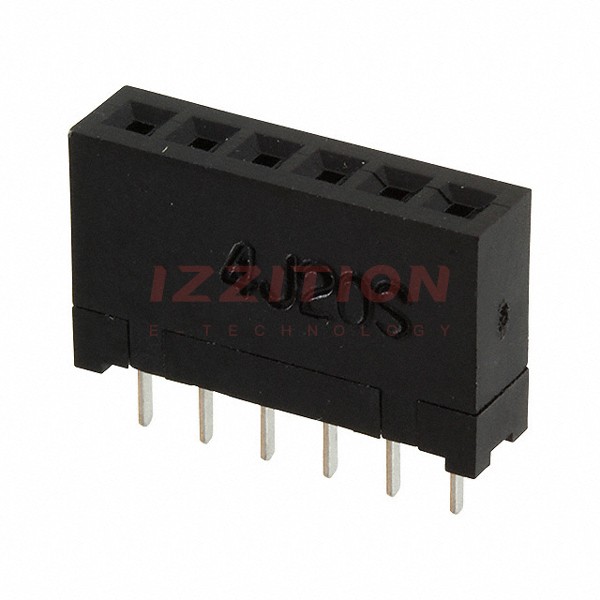

| Part Number | HIF3H-6SA-2.54DSA(71) | HIF3H-6DA-2.54DSA(71) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 2 |
| Row Spacing - Mating | - | 0.100" (2.54mm) |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | - | - |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.374" (9.50mm) | 0.374" (9.50mm) |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | 300VAC | 300VAC |
