HIF3H-14SA-2.54DSA(61)
  • Share:

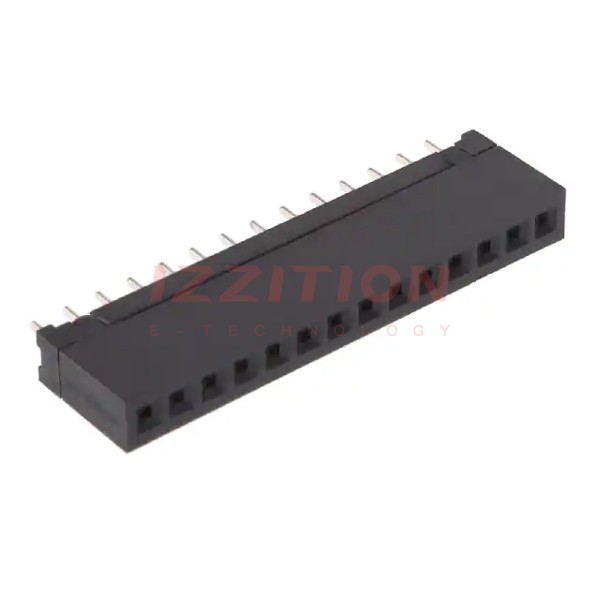

Hirose Electric Co Ltd HIF3H-14SA-2.54DSA(61)

Manufacturer No:
HIF3H-14SA-2.54DSA(61)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HIF3H-14SA-2.54DSA(61) Datasheet
ECAD Model:
-
Description:
CONN RCPT 14POS 0.1 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Cable/Wire
Number of Positions:14
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.374" (9.50mm)
Contact Length - Post:0.118" (3.00mm)
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):3A
Voltage Rating:300VAC
0 Remaining View Similar

In Stock

$4.42
156

Please send RFQ , we will respond immediately.

Similar Products

Part Number HIF3H-14SA-2.54DSA(61) HIF3H-14SA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Obsolete
Connector Type Receptacle Receptacle
Contact Type Female Socket Female Socket
Style Board to Cable/Wire Board to Board
Number of Positions 14 14
Number of Positions Loaded All All
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 1 1
Row Spacing - Mating - -
Mounting Type Through Hole Through Hole
Termination Solder Solder
Fastening Type Push-Pull -
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm)
Insulation Color Black Black
Insulation Height 0.374" (9.50mm) 0.374" (9.50mm)
Contact Length - Post 0.118" (3.00mm) 0.118" (3.00mm)
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0
Contact Finish - Post Tin Tin
Mated Stacking Heights - -
Ingress Protection - -
Features - -
Current Rating (Amps) 3A 3A
Voltage Rating 300VAC 300VAC
