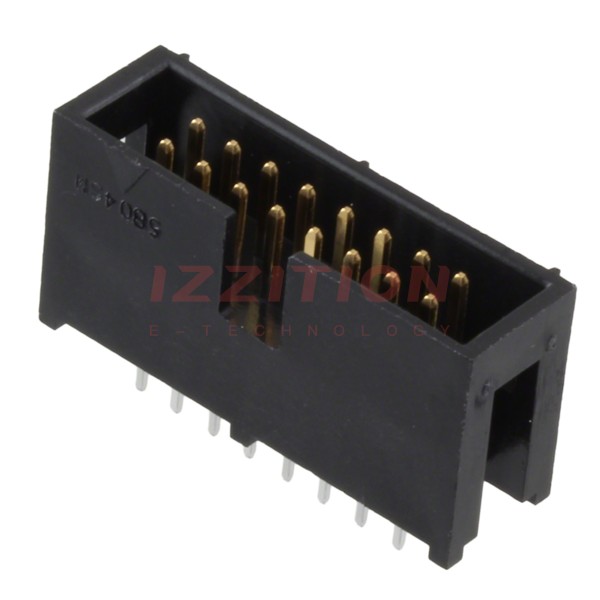

| Part Number | HIF3F-16PA-2.54DSA(71) | HIF3F-26PA-2.54DSA(71) | HIF3FC-16PA-2.54DSA(71) | HIF3F-10PA-2.54DSA(71) | HIF3F-16PA-2.54DS(71) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 16 | 26 | 16 | 10 | 16 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Board or Cable | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Push-Pull | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Contact Length - Post | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.110" (2.79mm) | 0.130" (3.30mm) | 0.118" (3.00mm) |
| Overall Contact Length | 0.622" (15.80mm) | 0.622" (15.80mm) | - | 0.622" (15.80mm) | - |
| Insulation Height | 0.547" (13.90mm) | 0.547" (13.90mm) | 0.350" (8.89mm) | 0.547" (13.90mm) | 0.335" (8.51mm) |
| Contact Shape | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | Keying Slot | Keying Slot | Keying Slot | Keying Slot | Keying Slot |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 200V | 200V | 200V | 200V | 200V |
