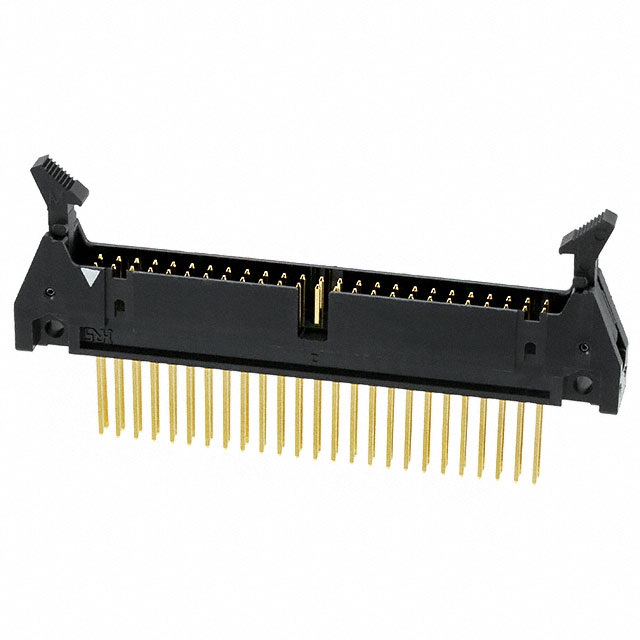

| Part Number | HIF3BB-50P-2.54W(88) | HIF3BA-50P-2.54W(88) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 50 | 50 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Wire Wrap | Wire Wrap |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Contact Length - Mating | 0.236" (6.00mm) | - |
| Contact Length - Post | 0.516" (13.10mm) | - |
| Overall Contact Length | 1.043" (26.50mm) | - |
| Insulation Height | 0.701" (17.80mm) | - |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | - | - |
| Contact Material | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | Keying Slot | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 1A | 1A |
| Voltage Rating | 200V | 200V |
