HIF3BB-50P-2.54W
  • Share:

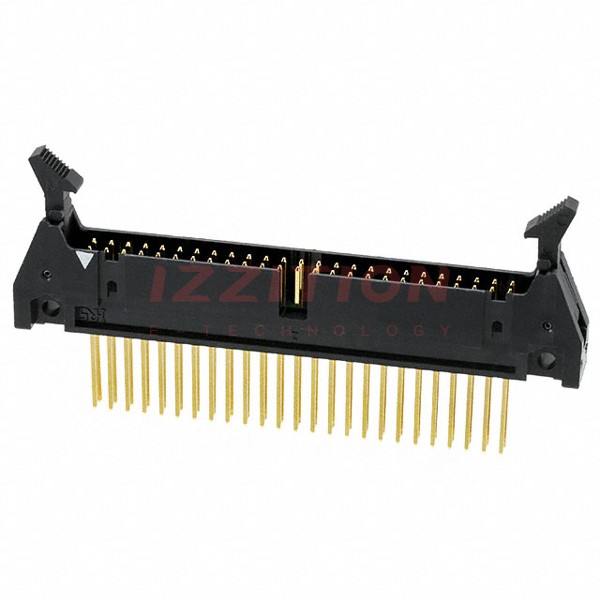

Hirose Electric Co Ltd HIF3BB-50P-2.54W

Manufacturer No:
HIF3BB-50P-2.54W
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HIF3BB-50P-2.54W Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 50POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:50
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Wire Wrap
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:0.516" (13.10mm)
Overall Contact Length:1.043" (26.50mm)
Insulation Height:0.701" (17.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:200V
0 Remaining View Similar

In Stock

-
231

Please send RFQ , we will respond immediately.

Similar Products

Part Number HIF3BB-50P-2.54W HIF3BB-60P-2.54W   HIF3BA-50P-2.54W
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete
Connector Type Header Header Header
Contact Type Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 50 60 50
Number of Rows 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole Through Hole
Termination Wire Wrap Wire Wrap Wire Wrap
Fastening Type Latch Lock/Eject Hooks Latch Lock/Eject Hooks Latch Lock/Eject Hooks
Contact Length - Mating 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Contact Length - Post 0.516" (13.10mm) 0.516" (13.10mm) 0.516" (13.10mm)
Overall Contact Length 1.043" (26.50mm) 1.043" (26.50mm) 1.043" (26.50mm)
Insulation Height 0.701" (17.80mm) 0.701" (17.80mm) 0.701" (17.80mm)
Contact Shape Square Square Square
Contact Finish - Mating Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Contact Finish - Post - - -
Contact Material Brass Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features Keying Slot Keying Slot Keying Slot
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Ingress Protection - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black
Current Rating (Amps) 1A 1A 1A
Voltage Rating 200V 200V 200V
