HIF3BA-40P-2.54W(63)
  • Share:

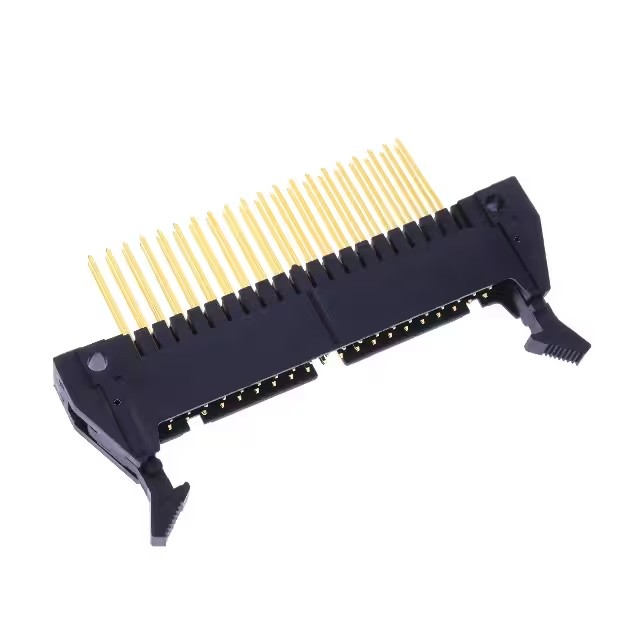

Hirose Electric Co Ltd HIF3BA-40P-2.54W(63)

Manufacturer No:
HIF3BA-40P-2.54W(63)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HIF3BA-40P-2.54W(63) Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 40POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Wire Wrap
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.701" (17.80mm)
Contact Shape:Square
Contact Finish - Mating:-
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:200V
0 Remaining View Similar

In Stock

$12.32
4

Please send RFQ , we will respond immediately.

Similar Products

Part Number HIF3BA-40P-2.54W(63) HIF3BA-20P-2.54W(63)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active
Connector Type Header Header
Contact Type Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 40 20
Number of Rows 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All
Style Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole
Termination Wire Wrap Wire Wrap
Fastening Type Latch Lock/Eject Hooks Latch Lock/Eject Hooks
Contact Length - Mating - -
Contact Length - Post - -
Overall Contact Length - -
Insulation Height 0.701" (17.80mm) 0.701" (17.80mm)
Contact Shape Square Square
Contact Finish - Mating - -
Contact Finish Thickness - Mating - -
Contact Finish - Post - -
Contact Material Brass Brass
Insulation Material Polybutylene Terephthalate (PBT) Polybutylene Terephthalate (PBT)
Features Keying Slot Keying Slot
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C
Ingress Protection - -
Material Flammability Rating UL94 V-0 UL94 V-0
Insulation Color Black Black
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 200V 200V
