HIF3BA-20D-2.54R(63)
  • Share:

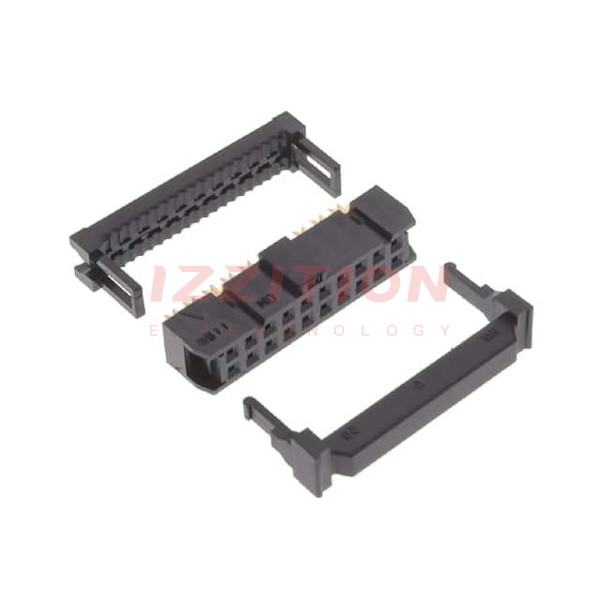

Hirose Electric Co Ltd HIF3BA-20D-2.54R(63)

Manufacturer No:
HIF3BA-20D-2.54R(63)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
HIF3BA-20D-2.54R(63) Datasheet
ECAD Model:
-
Description:
CONN SOCKET 20POS IDC 28AWG GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Socket
Contact Type:Female Socket
Number of Positions:20
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Free Hanging (In-Line)
Fastening Type:-
Cable Termination:IDC
Wire Type:Ribbon Cable
Wire Gauge:28 AWG
Features:Feed Through, Polarizing Key, Strain Relief
Contact Finish:Gold
Contact Finish Thickness:7.87µin (0.200µm)
Color:Black
0 Remaining View Similar

In Stock

$4.37
31

Please send RFQ , we will respond immediately.

Similar Products

Part Number HIF3BA-20D-2.54R(63) HIF3BA-30D-2.54R(63)   HIF3BA-40D-2.54R(63)   HIF3BA-50D-2.54R(63)   HIF3BA-60D-2.54R(63)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Active
Connector Type Socket Socket Socket Socket Socket
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 20 30 40 50 60
Pitch 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2 2 2 2
Row Spacing 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type - - - - -
Cable Termination IDC IDC IDC IDC IDC
Wire Type Ribbon Cable Ribbon Cable Ribbon Cable Ribbon Cable Ribbon Cable
Wire Gauge 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG
Features Feed Through, Polarizing Key, Strain Relief Feed Through, Polarizing Key, Strain Relief Feed Through, Polarizing Key, Strain Relief Feed Through, Polarizing Key, Strain Relief Feed Through, Polarizing Key, Strain Relief
Contact Finish Gold Gold Gold Gold Gold
Contact Finish Thickness 7.87µin (0.200µm) 7.87µin (0.200µm) 7.87µin (0.200µm) 7.87µin (0.200µm) 7.87µin (0.200µm)
Color Black Black Black Black Black
