HIF3BA-16PA-2.54DS(63)
  • Share:

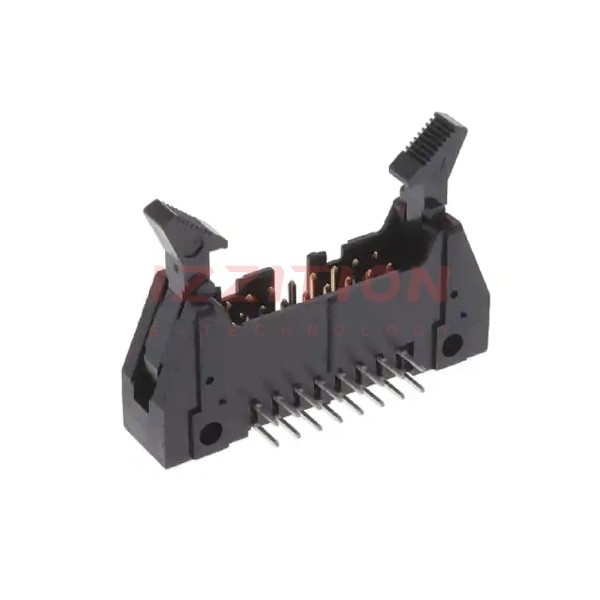

Hirose Electric Co Ltd HIF3BA-16PA-2.54DS(63)

Manufacturer No:
HIF3BA-16PA-2.54DS(63)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
HIF3BA-16PA-2.54DS(63) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 16POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:200V
0 Remaining View Similar

In Stock

$3.65
125

Please send RFQ , we will respond immediately.
