Please send RFQ , we will respond immediately.

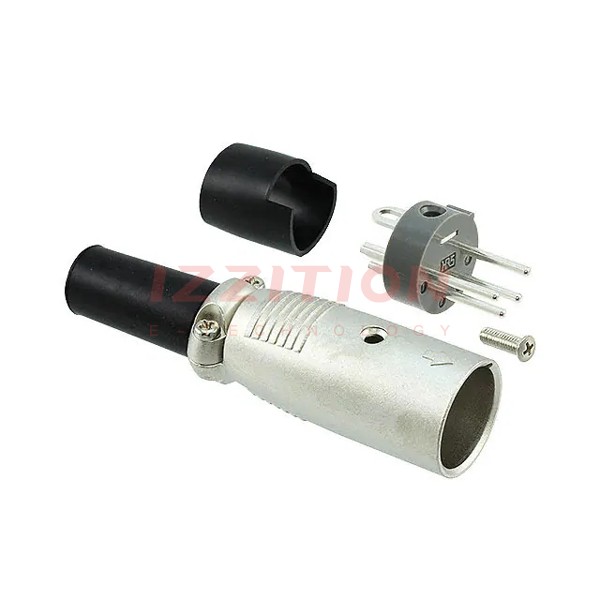

| Part Number | HA216J-4P(76) | HA216J-3P(76) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy |
| Connector Type | Jack, Male Pins | Jack, Male Pins |
| Number of Positions | 4 | 3 |
| Shell Size - Insert | 16 | 16 |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Push-Pull | Push-Pull |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Silver | Silver |
| Color | Silver | Silver |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Features | Cable Clamp, Strain Relief | Cable Clamp, Strain Relief |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | 5A | 15A |
| Voltage Rating | 130VAC, 180VDC | 130VAC, 180VDC |
| Cable Opening | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C |
