Please send RFQ , we will respond immediately.

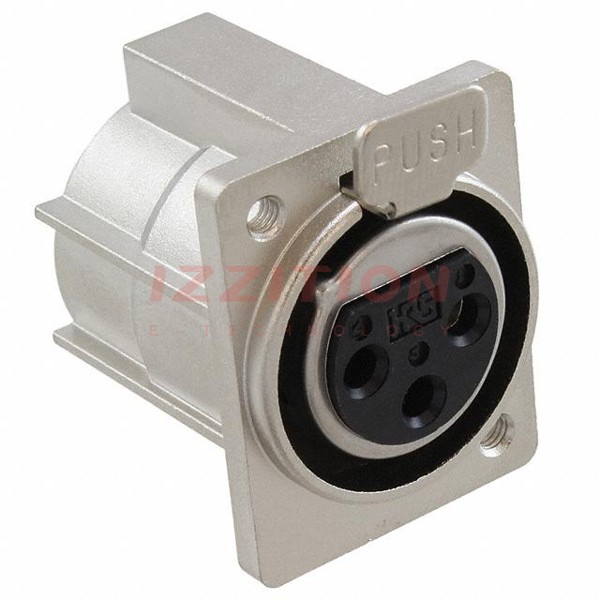

| Part Number | HA16PRM-3SE(71) | HA16PRM-3SG(71) | HA16PRM-3SB(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy |
| Connector Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 3 | 3 | 3 |
| Shell Size - Insert | 16 | 16 | 16 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Flange | Flange | Flange |
| Termination | Solder | - | Solder |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock |
| Orientation | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Aluminum or Zinc Alloy | Aluminum or Zinc Alloy | Aluminum or Zinc Alloy |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Silver | - | Silver |
| Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Ground | - | Ground |
| Shielding | Shielded | Shielded | Shielded |
| Current Rating (Amps) | 3A | 3A | 3A |
| Voltage Rating | 130VAC, 180VDC | 130VAC, 180VDC | 130VAC, 180VDC |
| Cable Opening | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
