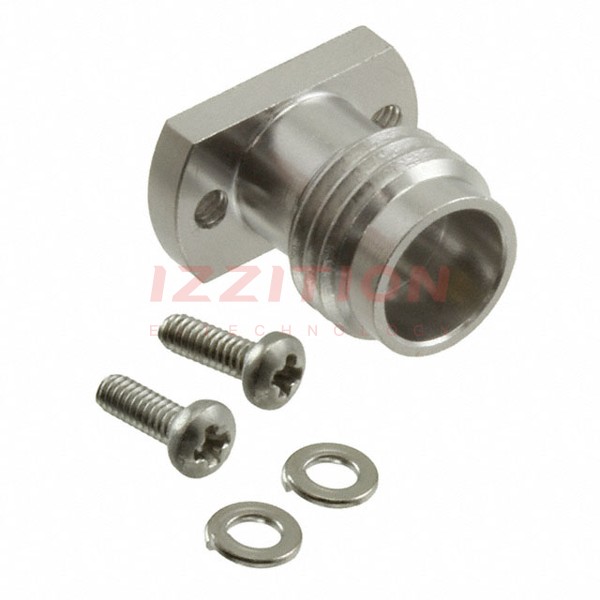

| Part Number | H2.4-R-SR2(11) | H2.4-R-SR2(12) | H2.4-LR-SR2(11) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Active |
| Connector Style | 2.4mm (APC-2.4, OS-50) | 2.4mm (APC-2.4, OS-50) | 2.4mm (APC-2.4, OS-50) |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket |
| Contact Termination | Compression | Compression | Compression |
| Shield Termination | Screw | Screw | Screw |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Surface Mount | Surface Mount | Board Edge, End Launch |
| Mounting Feature | Flange | Flange | - |
| Cable Group | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded |
| Frequency - Max | 50 GHz | 50 GHz | 50 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Mounting Hardware | Mounting Hardware | Mounting Hardware |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper |
