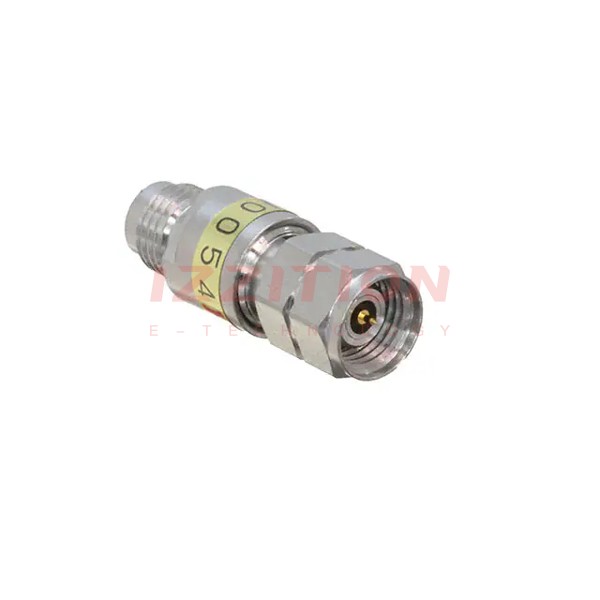

| Part Number | H2.4-AT(0)-PJ | H2.4-AT(10)-PJ | H2.4-AT(20)-PJ | H2.4-AT(5)-PJ | H2.4-AT(6)-PJ | H2.4-AT(3)-PJ | H2.4-AT(4)-PJ | H2.4-AT(1)-PJ | H2.4-AT(7)-PJ | H2.4-AT(8)-PJ | H2.4-AT(9)-PJ | H2.4-AT(2)-PJ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Attenuation Value | 0dB | 10dB | 20dB | 5dB | 6dB | 3dB | 4dB | 1dB | 7dB | 8dB | 9dB | 2dB |
| Frequency Range | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz | 0 Hz ~ 50 GHz |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Impedance | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Package / Case | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module | 2.4mm In-Line Module |
