H/MS08A18-10S-DT10D1(73)
  • Share:

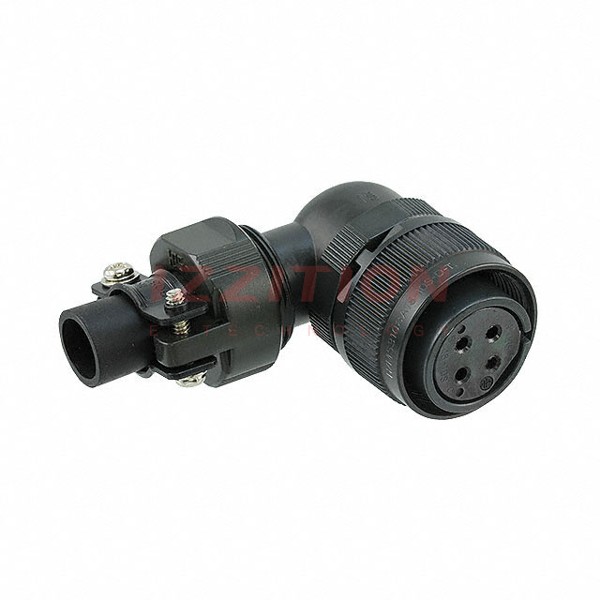

Hirose Electric Co Ltd H/MS08A18-10S-DT10D1(73)

Manufacturer No:
H/MS08A18-10S-DT10D1(73)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
H/MS08A18-10S-DT10D1(73) Datasheet
ECAD Model:
-
Description:
CONN PLUG FMALE 4P SOLDER CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Female Sockets
Number of Positions:4 (3 + PE)
Shell Size - Insert:18-10
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line), Right Angle
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Threaded
Orientation:N (Normal)
Primary Material:Metal
Shell Material:Aluminum Alloy
Shell Finish:Black Chromate
Contact Finish - Mating:Silver
Color:Black
Ingress Protection:IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell, Cable Clamp, Coupling Nut, Ground
Shielding:Unshielded
Current Rating (Amps):-
Voltage Rating:-
Cable Opening:0.394" ~ 0.492" (10.00mm ~ 12.50mm)
Operating Temperature:-40°C ~ 125°C
0 Remaining View Similar

In Stock

$91.87
9

Please send RFQ , we will respond immediately.

Similar Products

Part Number H/MS08A18-10S-DT10D1(73) H/MS08A18-10S-DT10D(73)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active
Connector Type Plug, Female Sockets Plug, Female Sockets
Number of Positions 4 (3 + PE) 4 (3 + PE)
Shell Size - Insert 18-10 18-10
Shell Size, MIL - -
Mounting Type Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle
Mounting Feature - -
Termination Solder Cup Solder Cup
Fastening Type Threaded Threaded
Orientation N (Normal) N (Normal)
Primary Material Metal Metal
Shell Material Aluminum Alloy Aluminum Alloy
Shell Finish Black Chromate Black Chromate
Contact Finish - Mating Silver Silver
Color Black Black
Ingress Protection IP67/IP68 - Dust Tight, Waterproof IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut, Ground Backshell, Cable Clamp, Coupling Nut, Ground
Shielding Unshielded Unshielded
Current Rating (Amps) - -
Voltage Rating - -
Cable Opening 0.394" ~ 0.492" (10.00mm ~ 12.50mm) 0.472" ~ 0.563" (12.00mm ~ 14.30mm)
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C
