Please send RFQ , we will respond immediately.

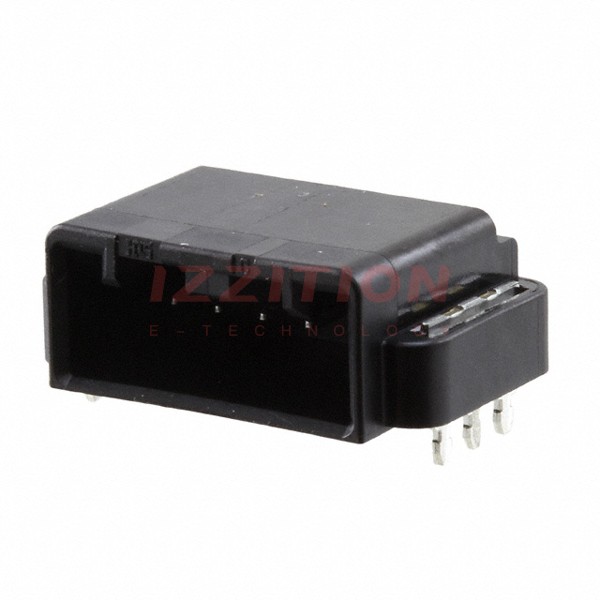

| Part Number | GT8E-5P-2H | GT8E-8P-2H | GT8E-6P-2H | GT8E-3P-2H | GT8E-4P-2H |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 5 | 8 | 6 | 3 | 4 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Contact Length - Mating | - | - | - | - | - |
| Contact Length - Post | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | 0.272" (6.91mm) | 0.272" (6.91mm) | 0.272" (6.91mm) | 0.272" (6.91mm) | 0.272" (6.91mm) |
| Contact Shape | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) | Polyphenylene Sulfide (PPS) |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| Operating Temperature | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - |
| Insulation Color | Black | Black | Black | Black | Black |
| Current Rating (Amps) | - | - | - | - | - |
| Voltage Rating | - | - | - | - | - |
