GT8E-2P2P-DS(20)
  • Share:

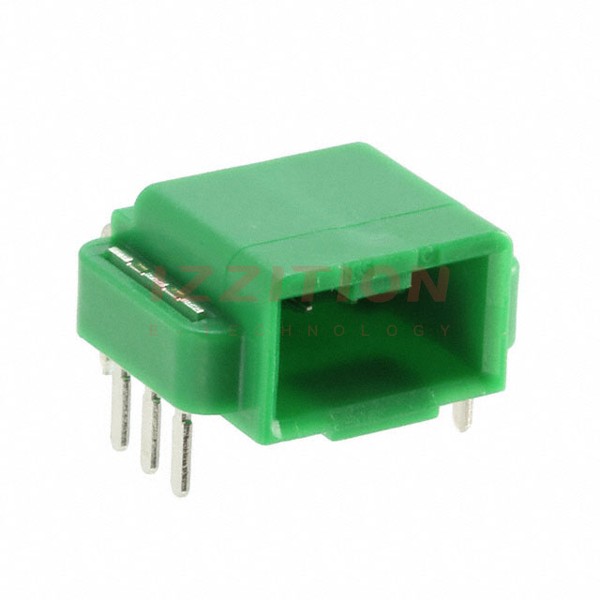

Hirose Electric Co Ltd GT8E-2P2P-DS(20)

Manufacturer No:
GT8E-2P2P-DS(20)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
GT8E-2P2P-DS(20) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 4POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.276" (7.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):1A
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
231

Please send RFQ , we will respond immediately.
