GT8E-24DP-2H
  • Share:

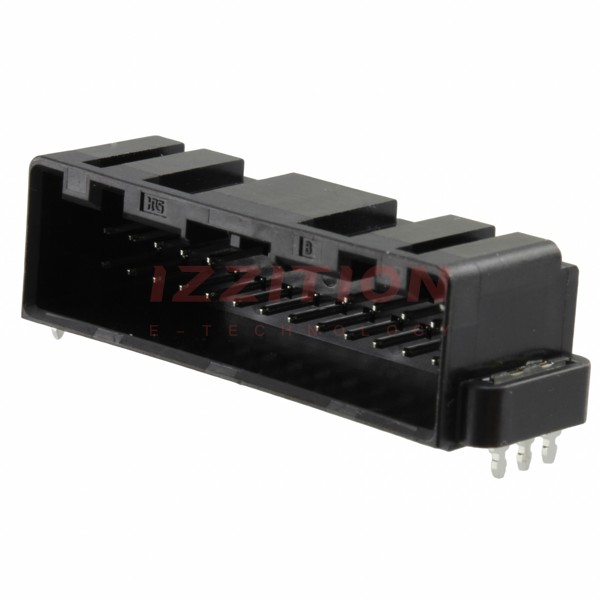

Hirose Electric Co Ltd GT8E-24DP-2H

Manufacturer No:
GT8E-24DP-2H
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
GT8E-24DP-2H Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 24POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.403" (10.23mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Board Lock
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$3.55
276

Please send RFQ , we will respond immediately.
