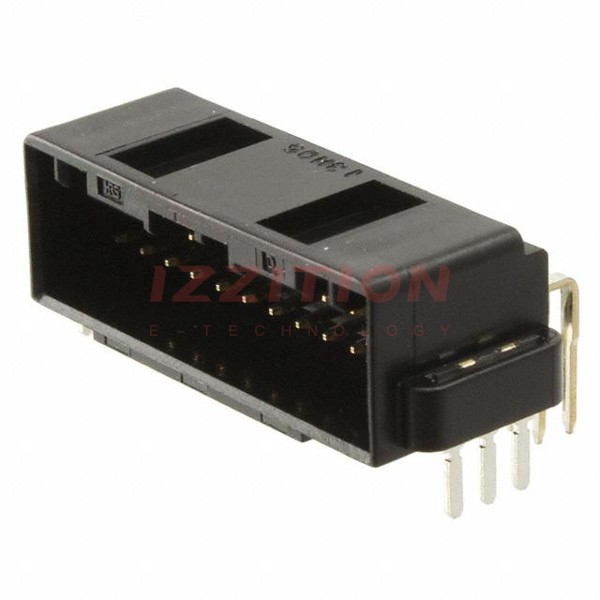

| Part Number | GT8E-20DP-DS | GT8E-24DP-DS |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 20 | 24 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.387" (9.83mm) | 0.387" (9.83mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | Board Guide | Board Guide |
| Operating Temperature | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
