GT3B-20DP-2.5DSA(70)
  • Share:

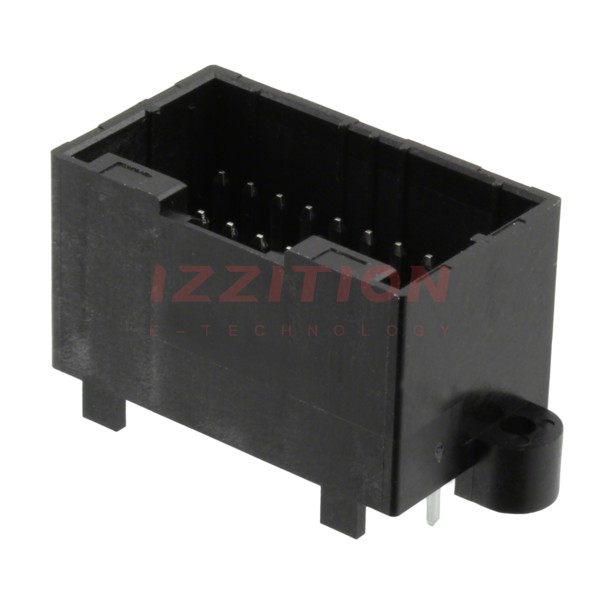

Hirose Electric Co Ltd GT3B-20DP-2.5DSA(70)

Manufacturer No:
GT3B-20DP-2.5DSA(70)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
GT3B-20DP-2.5DSA(70) Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 20POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.205" (5.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.276" (7.00mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.748" (19.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
415

Please send RFQ , we will respond immediately.
