GT25-16DP-2.2V(01)
  • Share:

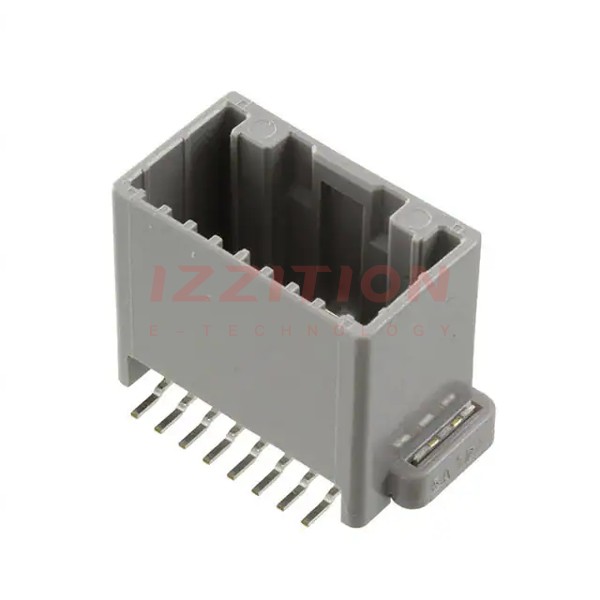

Hirose Electric Co Ltd GT25-16DP-2.2V(01)

Manufacturer No:
GT25-16DP-2.2V(01)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tray
Datasheet:
GT25-16DP-2.2V(01) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 16POS 2.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.087" (2.20mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.220" (5.59mm)
Contact Length - Post:0.055" (1.40mm)
Overall Contact Length:-
Insulation Height:0.740" (18.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

-
364

Please send RFQ , we will respond immediately.
