Please send RFQ , we will respond immediately.

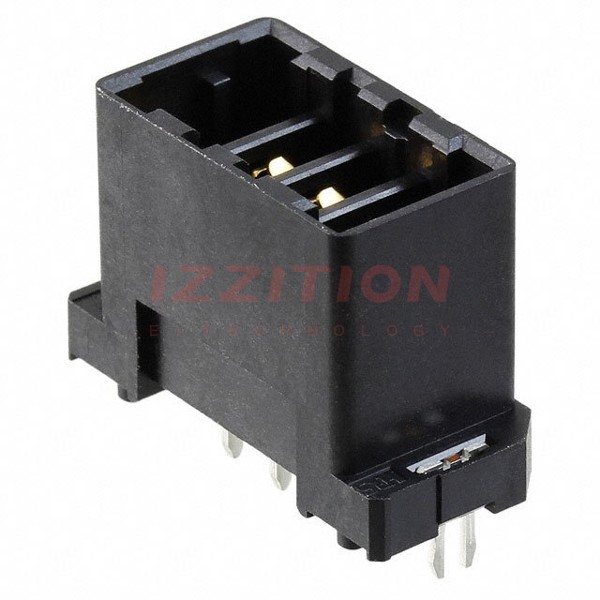

| Part Number | FX30B-3S-3.81DSA | FX30B-5S-3.81DSA | FX30B-4S-3.81DSA | FX30B-2S-3.81DSA | FX30B-3S-3.81DS |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Blade Socket | Female Blade Socket | Female Blade Socket | Female Blade Socket | Female Blade Socket |
| Style | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Number of Positions | 3 | 5 | 4 | 2 | 3 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch - Mating | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | 3.90µin (0.099µm) | 3.90µin (0.099µm) | 3.90µin (0.099µm) | 3.90µin (0.099µm) |
| Insulation Color | Black | Black | Black | Black | Black |
| Insulation Height | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.433" (11.00mm) |
| Contact Length - Post | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | 20mm, 25mm, 30mm | 20mm, 25mm, 30mm | 20mm, 25mm, 30mm | 20mm, 25mm, 30mm | - |
| Ingress Protection | - | - | - | - | - |
| Features | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock |
| Current Rating (Amps) | 15A | 13A | 13A | 16A | 15A |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V |
