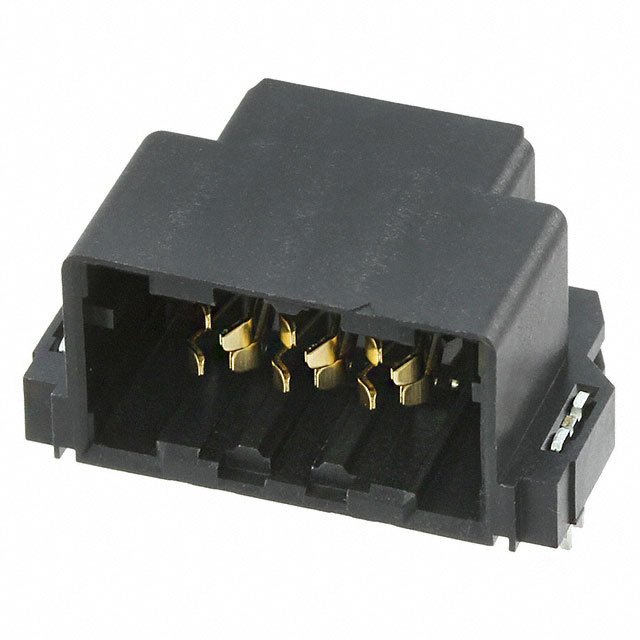

| Part Number | FX30A-3S-3.81DS | FX30B-3S-3.81DS |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | - | Female Blade Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 3 | 3 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | - | Latch Holder |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | 3.90µin (0.099µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.433" (11.00mm) | 0.433" (11.00mm) |
| Contact Length - Post | - | 0.130" (3.30mm) |
| Operating Temperature | - | -55°C ~ 105°C |
| Material Flammability Rating | - | UL94 V-0 |
| Contact Finish - Post | - | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Current Rating (Amps) | 15A | 15A |
| Voltage Rating | 250V | 250V |
