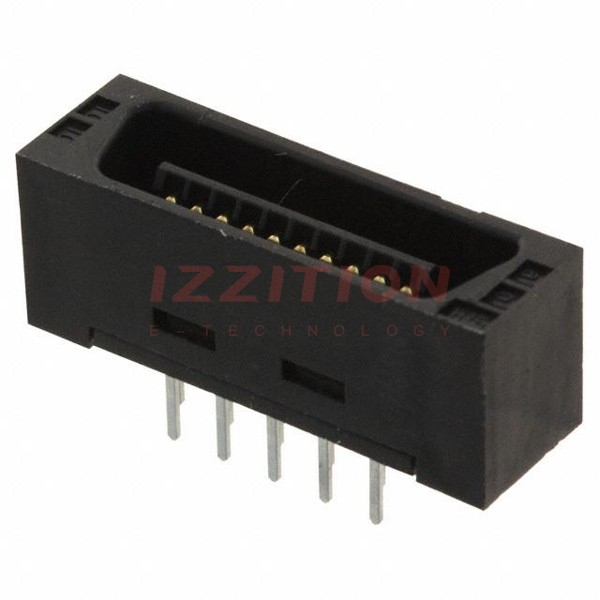

| Part Number | FX2C-20P-1.27DSA(71) | FX2C-40P-1.27DSA(71) | FX2C-80P-1.27DSA(71) | FX2C-20S-1.27DSA(71) | FX2C-60P-1.27DSA(71) | FX2CA-20P-1.27DSA(71) | FX2C-20P-1.27DSAL(71) | FX2C1-20P-1.27DSA(71) | FX2C2-20P-1.27DSA(71) | FX2C-120P-1.27DSA(71) |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Style | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug | Plug | Receptacle | Plug | Plug | Plug | Plug | Plug | Plug |
| Number of Positions | 20 | 40 | 80 | 20 | 60 | 20 | 20 | 120 | 20 | 120 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - | - | - | - | - | - | - |
| Type | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Features | - | - | - | - | - | - | Board Lock | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) | 7.87µin (0.200µm) |
