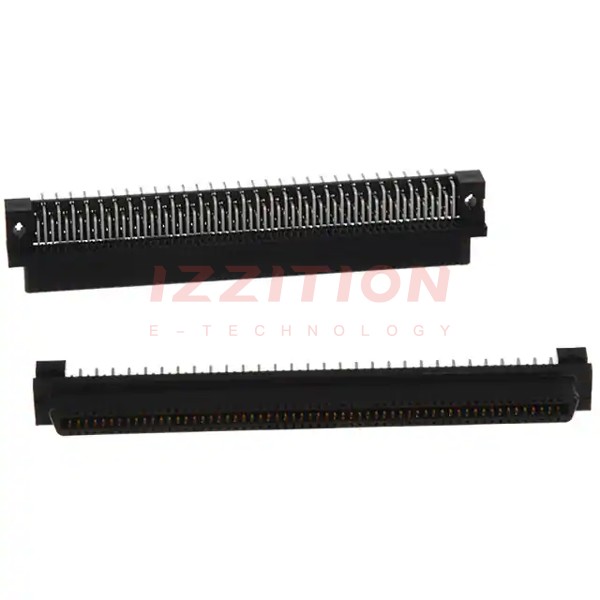

| Part Number | FX2-120S-1.27DS(71) | FX2-120S-1.27DSL(71) | FX2-20S-1.27DS(71) | FX2-100S-1.27DS(71) | FX2-120P-1.27DS(71) |
|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active | Active | Active |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Outer Shroud Contacts | Center Strip Contacts |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Plug |
| Number of Positions | 120 | 120 | 20 | 100 | 120 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - | - |
| Type | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Features | - | Board Lock | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 7.87µin (0.200µm) | 7.87µin (0.200µm) | - | 7.87µin (0.200µm) | 7.87µin (0.200µm) |
