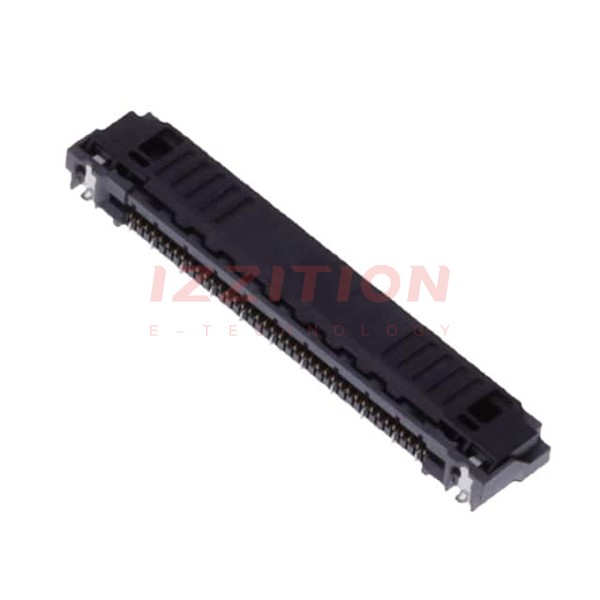

| Part Number | FH63-40S-0.5SH | FH63S-40S-0.5SH | FH63-30S-0.5SH |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Active | Obsolete |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 40 | 40 | 30 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.33mm | 0.30mm | 0.33mm |
| Height Above Board | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
| Locking Feature | Flip Lock, Backlock | Flip Lock, Backlock | Flip Lock, Backlock |
| Cable End Type | Notched | Notched | Notched |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Features | - | Solder Retention | - |
| Voltage Rating | 50V | 50V | 50V |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
