Please send RFQ , we will respond immediately.

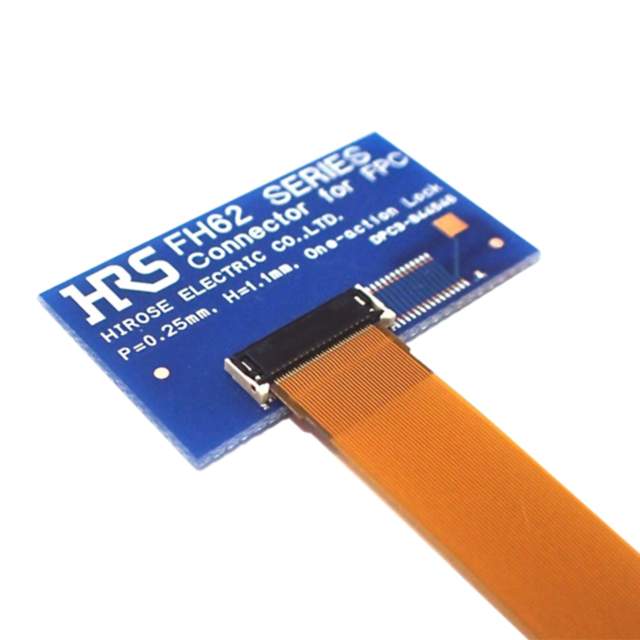

| Part Number | FH62-35S-0.25SHW(99) | FH62-55S-0.25SHW(99) | FH62-31S-0.25SHW(99) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Flat Flex Type | FPC | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top | Contacts, Top | Contacts, Top |
| Number of Positions | 35 | 55 | 31 |
| Pitch | 0.010" (0.25mm) | 0.010" (0.25mm) | 0.010" (0.25mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.043" (1.08mm) | 0.043" (1.08mm) | 0.043" (1.08mm) |
| Locking Feature | Flip Lock, Backlock | Flip Lock, Backlock | Flip Lock, Backlock |
| Cable End Type | Notched | Notched | Notched |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Features | - | - | - |
| Voltage Rating | 30V | 30V | 30V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
