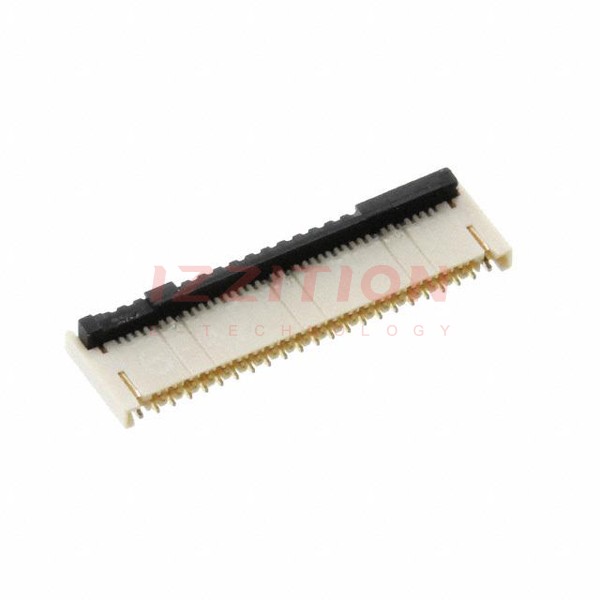

| Part Number | FH53-41S-0.2SHW(99) | FH58-41S-0.2SHW(99) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Active |
| Flat Flex Type | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top | Contacts, Top and Bottom |
| Number of Positions | 41 | 41 |
| Pitch | 0.008" (0.20mm) | 0.008" (0.20mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.12mm | 0.20mm |
| Height Above Board | 0.026" (0.65mm) | 0.035" (0.88mm) |
| Locking Feature | Flip Lock, Backlock | Flip Lock, Backlock |
| Cable End Type | Notched | Notched |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Polyamide (PA), Nylon, Halogen Free |
| Features | - | - |
| Voltage Rating | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0, UL94 HB | UL94 V-0 |
