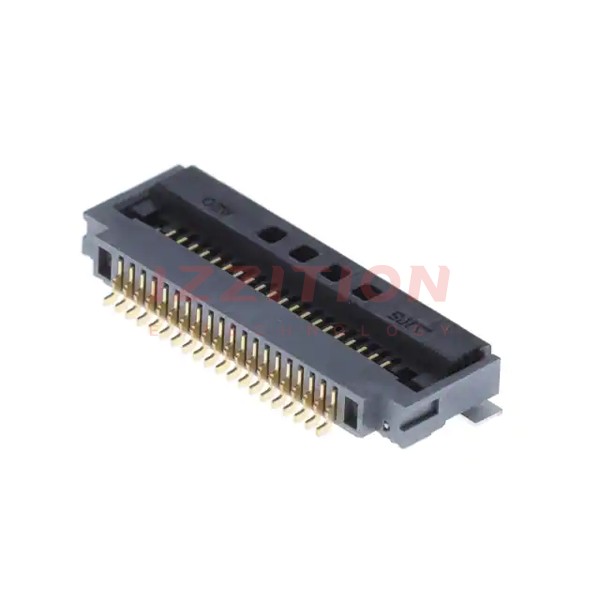

| Part Number | FH52K-20S-0.5SH(99) | FH52-20S-0.5SH(99) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 20 | 20 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm |
| Height Above Board | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Tabbed | Tabbed |
| Contact Material | Copper Alloy | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention, Zero Insertion Force (ZIF) | - |
| Voltage Rating | 50V | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
