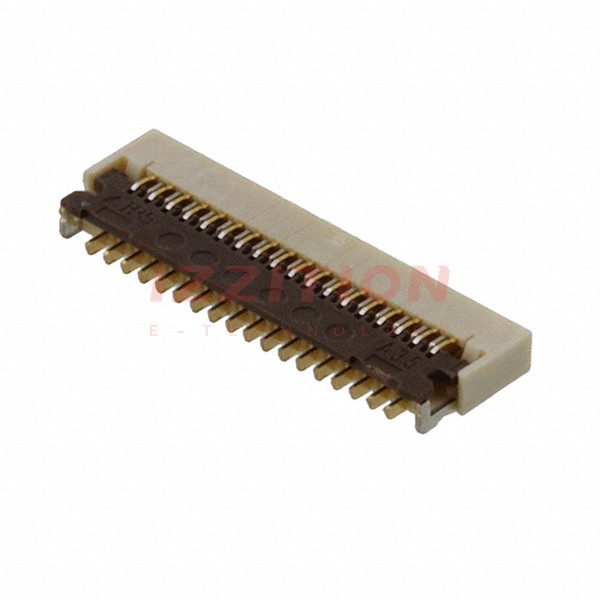

| Part Number | FH43BW-35S-0.2SHW(10) | FH43B-35S-0.2SHW(10) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Flat Flex Type | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 35 | 35 |
| Pitch | 0.008" (0.20mm) | 0.008" (0.20mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.20mm | 0.20mm |
| Height Above Board | 0.035" (0.88mm) | 0.035" (0.88mm) |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Tabbed | Tabbed |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V | 30V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
