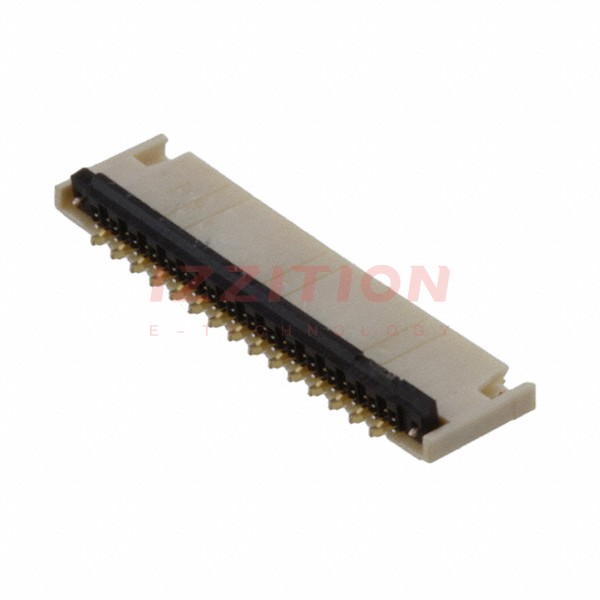

| Part Number | FH42-31S-0.3SHW(99) | FH42-11S-0.3SHW(99) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Last Time Buy | Last Time Buy |
| Flat Flex Type | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top | Contacts, Top |
| Number of Positions | 31 | 11 |
| Pitch | 0.012" (0.30mm) | 0.012" (0.30mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.12mm | 0.12mm |
| Height Above Board | 0.065" (1.65mm) | 0.065" (1.65mm) |
| Locking Feature | Flip Lock, Backlock | Flip Lock, Backlock |
| Cable End Type | Notched | Notched |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V | 30V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | - | - |
