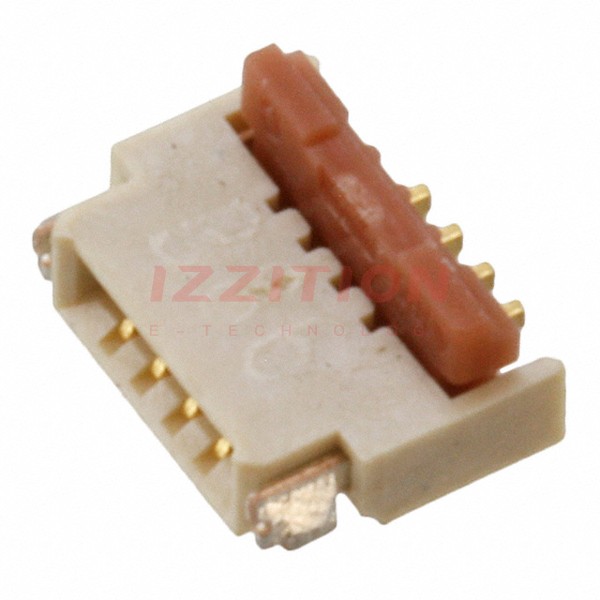

| Part Number | FH34SW-4S-0.5SH(50) | FH34S-4S-0.5SH(50) | FH34SJ-4S-0.5SH(50) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Obsolete | Obsolete | Obsolete |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top | Contacts, Top | Contacts, Top |
| Number of Positions | 4 | 4 | 4 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Locking Feature | Rotary Lock, Backlock | Rotary Lock, Backlock | Rotary Lock, Backlock |
| Cable End Type | Tapered | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V | 50V | 50V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 HB | UL94 V-0 | UL94 V-0 |
