FH34S-32S-0.5SH(50)
  • Share:

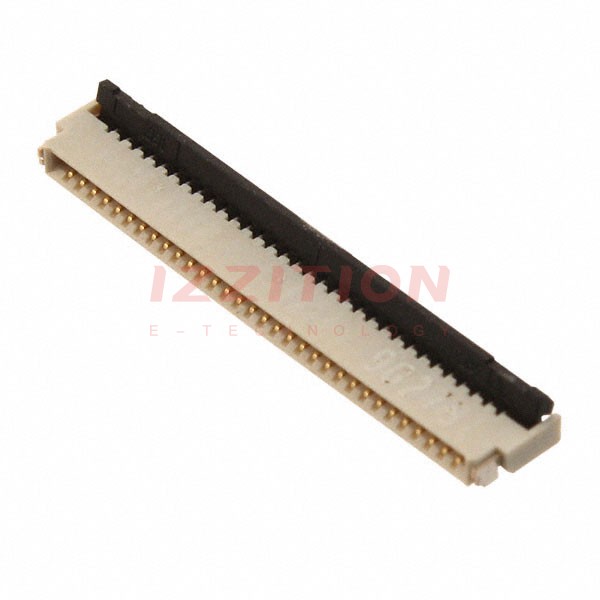

Hirose Electric Co Ltd FH34S-32S-0.5SH(50)

Manufacturer No:
FH34S-32S-0.5SH(50)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
FH34S-32S-0.5SH(50) Datasheet
ECAD Model:
-
Description:
CONN FFC TOP 32POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:32
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Rotary Lock, Backlock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA), Nylon
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
183

Please send RFQ , we will respond immediately.

Similar Products

Part Number FH34S-32S-0.5SH(50) FH34S-34S-0.5SH(50)   FH34S-22S-0.5SH(50)   FH34S-30S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete
Flat Flex Type FFC, FPC FFC, FPC FFC, FPC FFC, FPC
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Connector/Contact Type Contacts, Top Contacts, Top Contacts, Top Contacts, Top
Number of Positions 32 34 22 30
Pitch 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm) 0.020" (0.50mm)
Termination Solder Solder Solder Solder
FFC, FCB Thickness 0.30mm 0.30mm 0.30mm 0.30mm
Height Above Board 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm) 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock Rotary Lock, Backlock Rotary Lock, Backlock Rotary Lock, Backlock
Cable End Type Tapered Tapered Tapered Tapered
Contact Material Phosphor Bronze Phosphor Bronze Phosphor Bronze Phosphor Bronze
Contact Finish Gold Gold Gold Gold
Housing Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF) Zero Insertion Force (ZIF)
Voltage Rating 50V 50V 50V 50V
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
