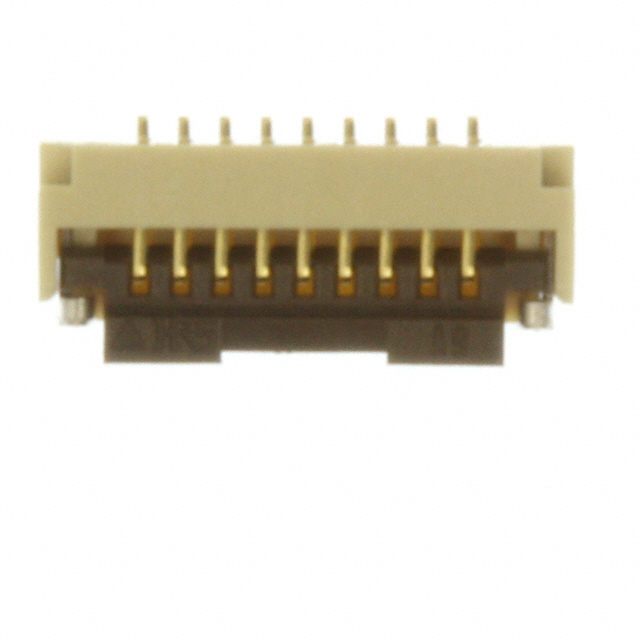

| Part Number | FH33-9S-0.5SH(99) | FH33-6S-0.5SH(99) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 9 | 6 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm |
| Height Above Board | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Locking Feature | Flip Lock | Flip Lock |
| Cable End Type | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Actuator Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V | 50V |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
