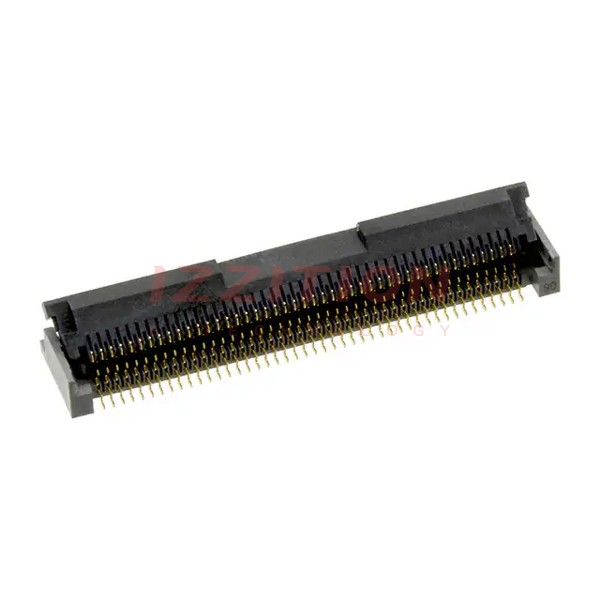

| Part Number | FH30-90S-0.3SHW(98) | FH30-60S-0.3SHW(98) | FH30-80S-0.3SHW(98) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Last Time Buy |
| Flat Flex Type | FPC | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 90 | 60 | 80 |
| Pitch | 0.012" (0.30mm) | 0.012" (0.30mm) | 0.012" (0.30mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Locking Feature | Rotary Lock | Rotary Lock | Rotary Lock |
| Cable End Type | Tabbed | Tabbed | Tabbed |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | - | - | - |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
