FH29-120S-0.2SHW(05)
  • Share:

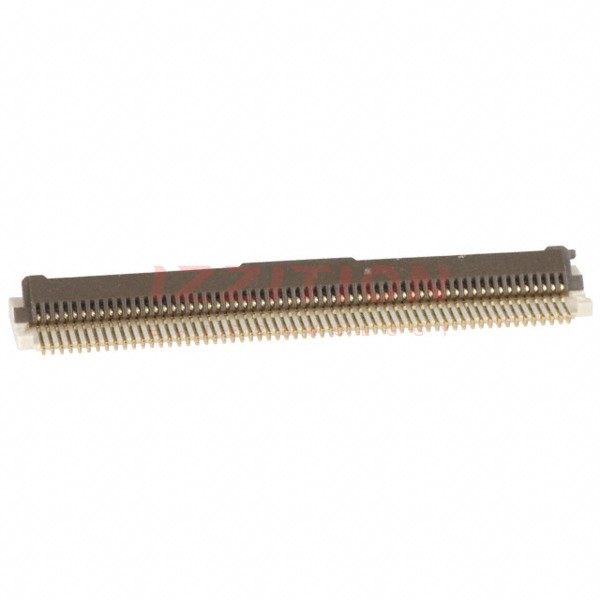

Hirose Electric Co Ltd FH29-120S-0.2SHW(05)

Manufacturer No:
FH29-120S-0.2SHW(05)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
FH29-120S-0.2SHW(05) Datasheet
ECAD Model:
-
Description:
CONN FPC BOTTOM 120POS 0.20MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:120
Pitch:0.008" (0.20mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.047" (1.20mm)
Locking Feature:Flip Lock
Cable End Type:Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA), Nylon
Features:Zero Insertion Force (ZIF)
Voltage Rating:40V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
352

Please send RFQ , we will respond immediately.
